Product Code : rx-135
Model No : Maxima 4-Wheel

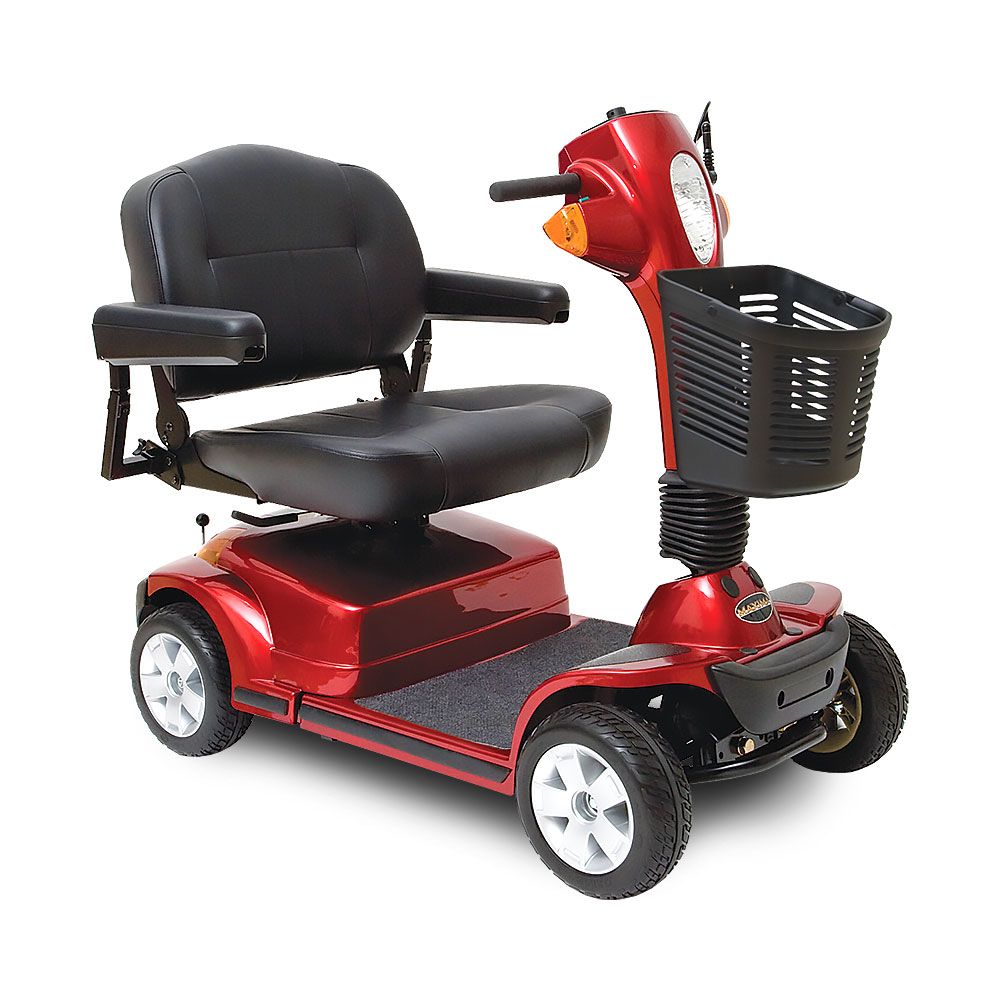

Maxima 4-Wheel

The Maxima 4-Wheel scooter features an upgraded electronics package to deliver heavy-duty performance and value

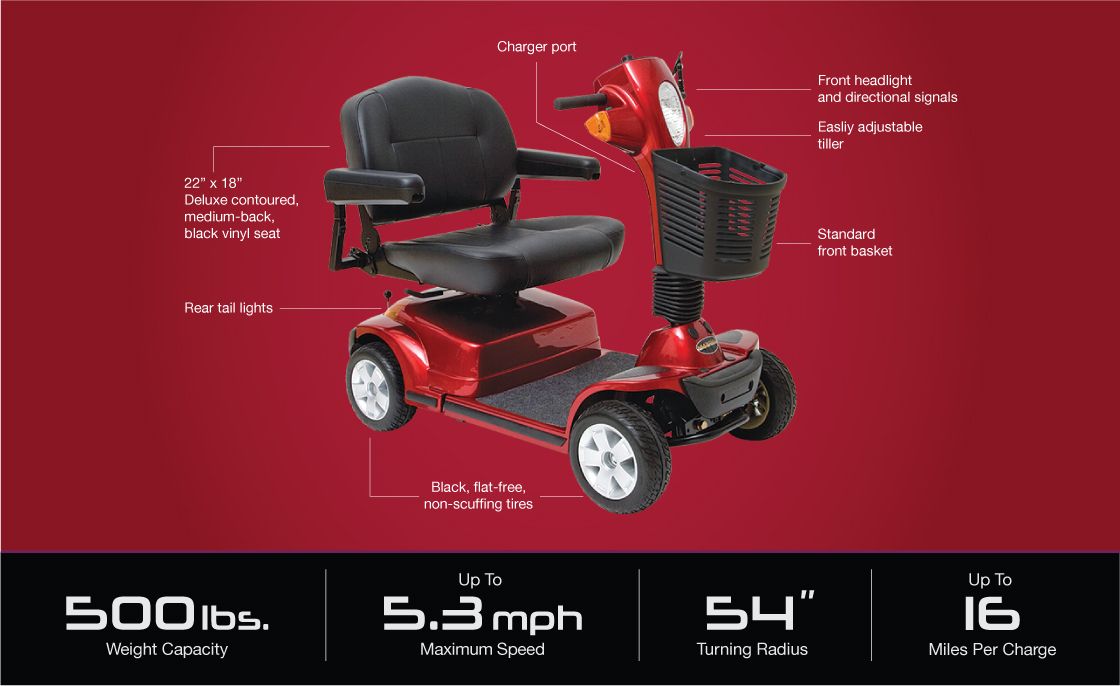

Model    Maxima 4-Wheel

Model Number        SC940

Turning Radius** 54"

Overall Length** 47"

Overall Width of Base** 25.5"

Front Tires 3" x 10" Solid

Rear Tires 4" x 10" Solid

Maximum Speed* Up to 5.3 mph

Ground Clearanc 3.25" at mid frame

Seat-to-Ground Height Range 22.5"-24.5"

Seat Type Deluxe Contoured Medium-back (22"x18")

Weight** 176 lbs.

Seat-to-Deck Height Range 16"-18"

Battery Weight 38 lbs. each

Battery Requirements (2) NF-22

Maximum Range Per Charge* Up to 16 miles

Battery Charger Off-board, 5A

Maximum Weight Capacity 500 lbs.

Standard Battery Colors Candy Apple Red, Viper Blue

Weight of Heaviest Piece** 76 lbs. (Rear Section)

Medicare Code Coverage K0808 - Group 2 Very Heavy Duty***

Warranty Lifetime limited on frame;

2-year limited on Electronics;

2-year limited on Drivetrain

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.

**Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%

***Must be billed to Medicare as either a beneficiary requested upgrade with a properly executed ABN, or as an upgrade at no additional charge to the beneficiary.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)


Lifetime limited warranty on frame

2-year limited warranty on electronics

2-year limited warranty on drivetrain
