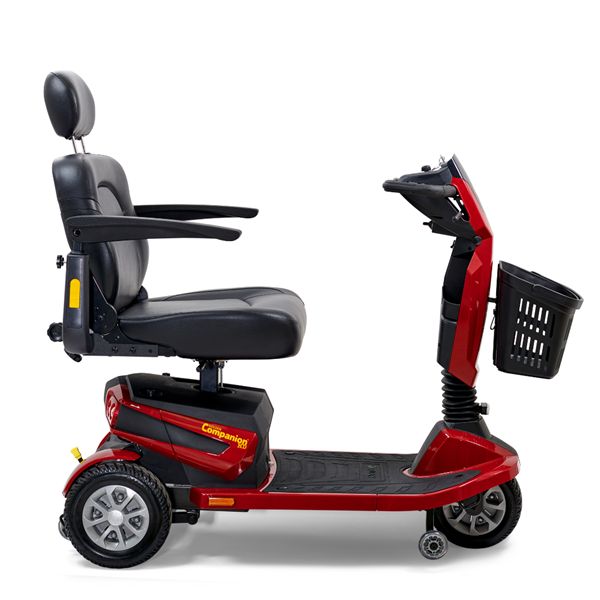

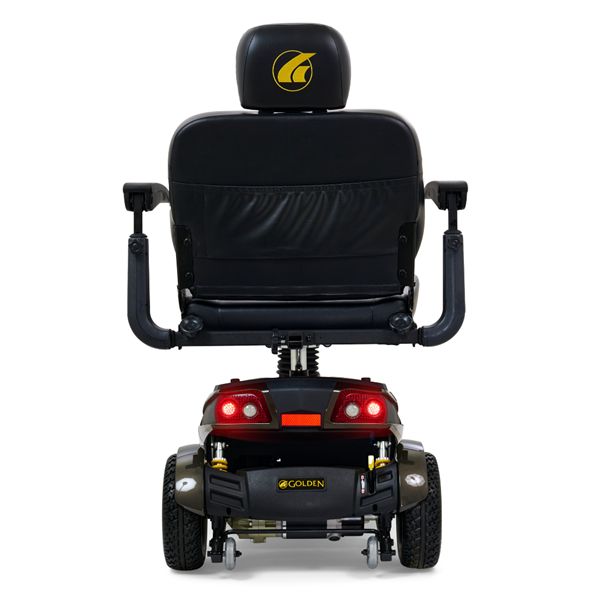

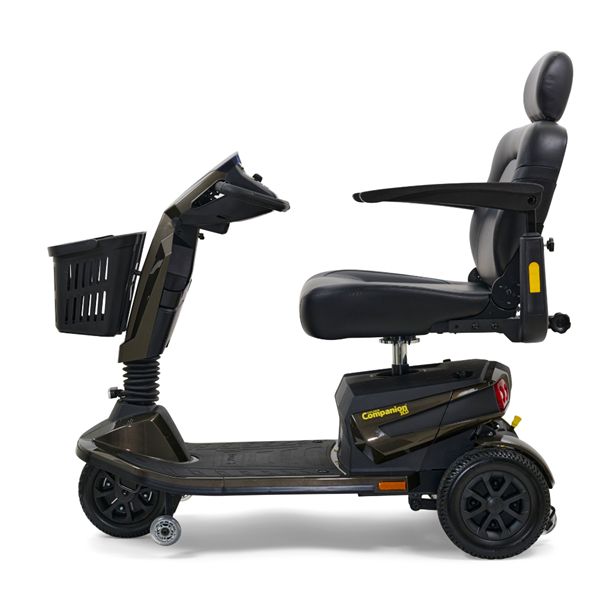

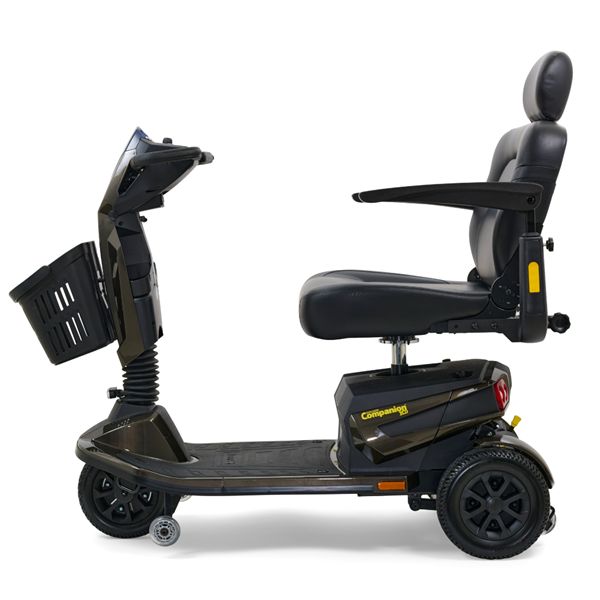

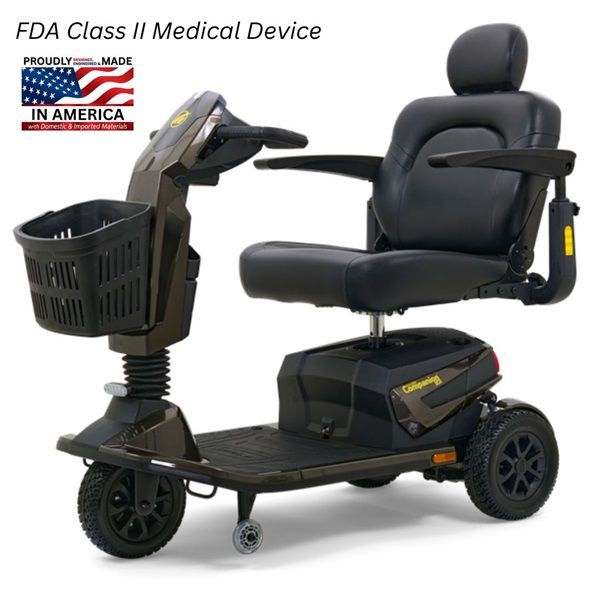

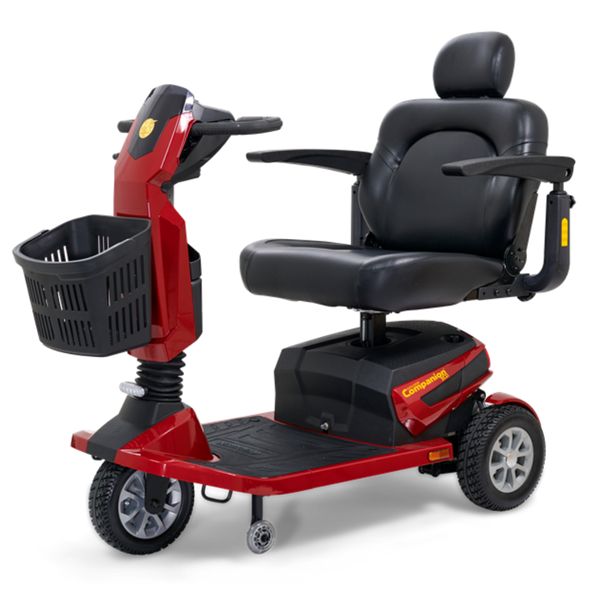

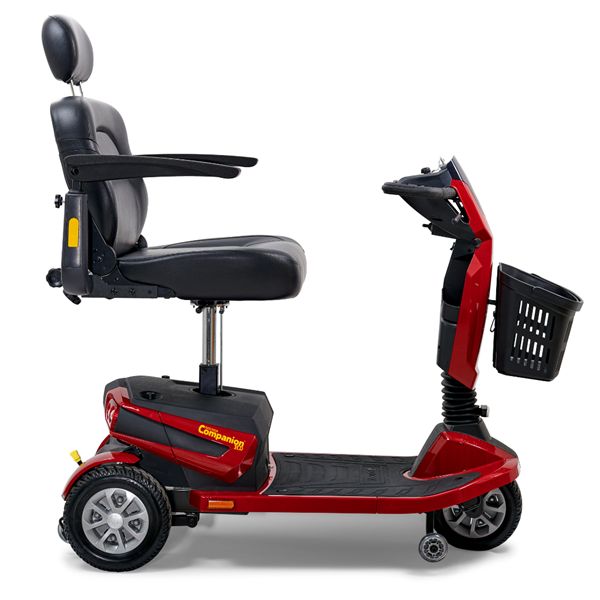

Companion HD

• Medicare Code:

  K0808

• User Weight Capacity:

  500 lbs

• Drive Wheels:

  Rear

• Maximum Speed:

  6 mph

• Operating Range:

  16 miles

• Ground Clearnace to Center Deck:

  6.25"

• Ground Clearance to Transaxle/Motor:

  3.75"

• Turning Radius:

  51"

• Type Batteries:

  2-NF22

• Optional Batteries:

  N/A

• Colors:

  Blue, Grey, Red

• Freewheel Mode:

  Yes

• Electronic Speed Control:

  Yes

• Electro-Mechanical Brakes:

  Yes

• Charger:

  Portable 8 Amp Off Board

• Controller:

  120 Amp

• Length:

  48"

• Width:

  30.5"

• Height (ground to top of back of headrest):

  N/A

• Ground to Top of Seat:

  24.5” – 27.5”

• Ground to Top of Deck:

  8”

• Deck to Top of Seat:

  16.5” – 19.5”

• Number Seat Height Positions:

  4

• Size of Increments:

  1”

• Front Axle to Rear Axle:

  36”

• Weight of Unit (assembled):

  225.5 lbs

• Tires (standard):

  Flat Free / Non Marking Solid

• Front Tires:

  10.75"

• Rear Tires:

  10.75"

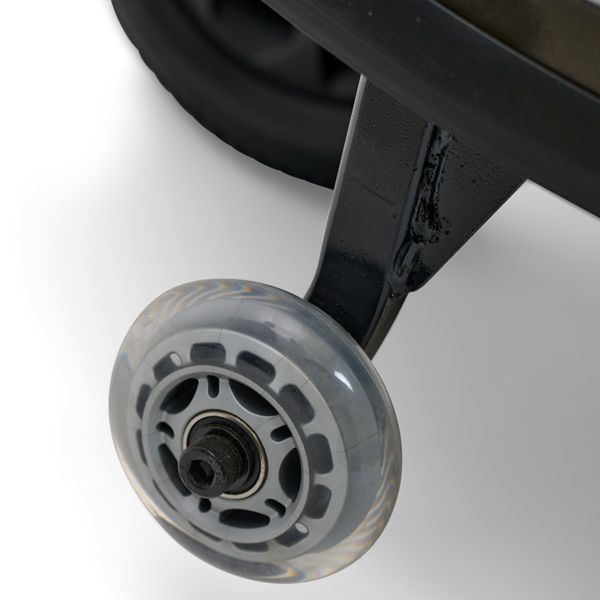

• Front & Rear Anti-Tippers:

  3"

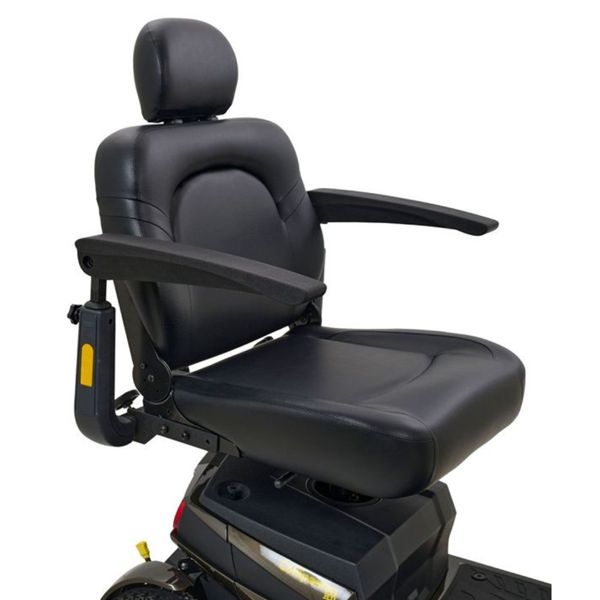

• Standard Seat:

  Extra Wide High Back

• Seat Back Height – no headrest:

  18"

• Seat Width x Depth:

  22” x 20”

• Seat Color:

  Black

• Seat Rotation:

  90 Degree either direction 360 Degrees

• Optional Seat:

  Captain's Chair

• Optional Seat Back Height – no headrest:

  18"

• Optional Seat Width x Depth:

  20” x 20”

• Optional Seat Color:

  Black

• Power Elevating Seat – 6” with Lockout:

  Yes

• Warranty on Frame:

  5 Year

• Warranty Drive Train:

  2 years

• Warranty Electronics:

  2 years

• Warranty Batteries:

  1 year

Overview

Weight Capacity: 500 lbs

Length: 48″

Width: 30.5″

Operating Range: 16 miles

Maximum Speed: 6 mph

Medicare Code: K0808

Color Shrouds

•

  Azure Blue

•

  Crimson Red

•

  Galactic Grey

Warranty

Warranty Drive Train: 2 years

Warranty Electronics: 2 years

Warranty Batteries: 1 year

Size

Turning Radius: 51″

Length: 48″

Width: 30.5″

Brochure
