Product Code : rx-102
Model No : GP620

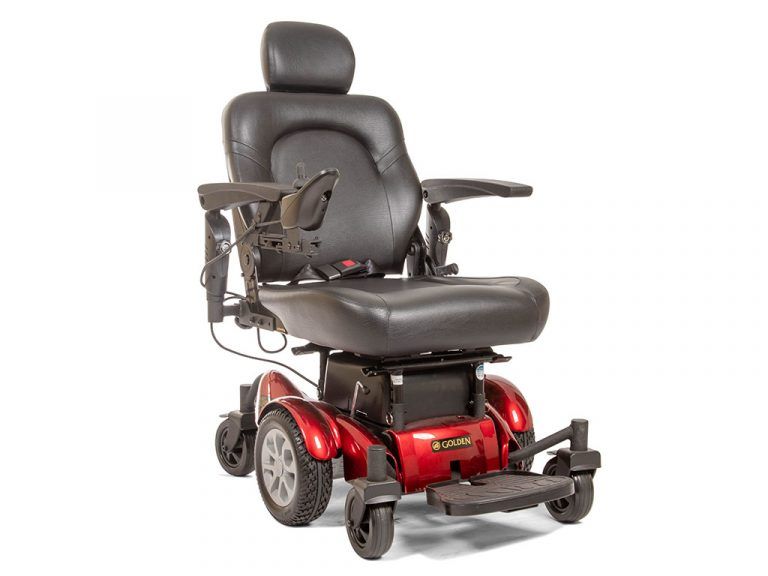

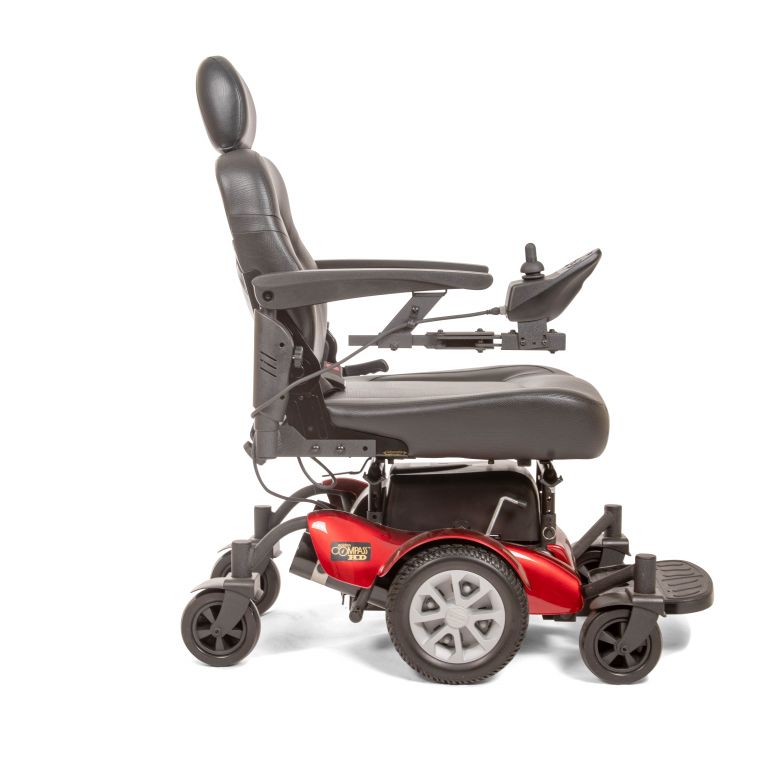

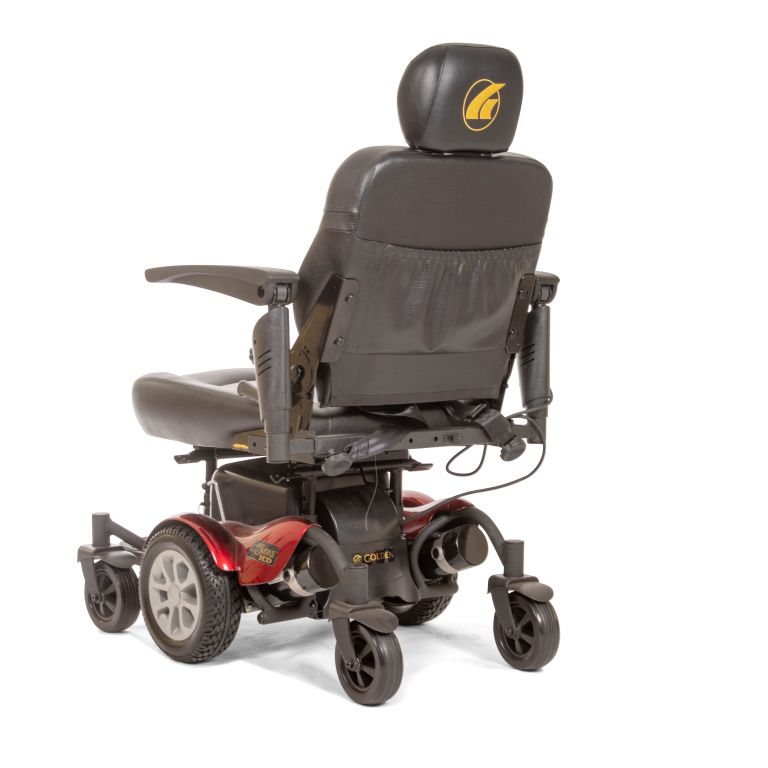

Compass HD Power Chair

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!

  • Standard captain’s seat with our exclusive fold-flat seat hinge design
  • Optional seating includes ProFlex Seat and van/pan seat
  • Exclusive slide seat mechanism for easy seat removal and attachment
  • 450 lb. weight capacity
  • Adjustable headrest and armrests

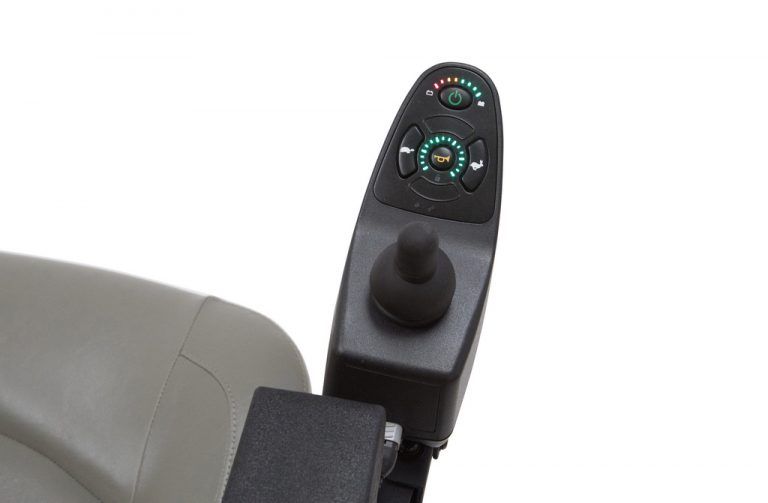

  • 75 amp peak Dynamic Shark controller standard
  • Off-board charger
  • Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
  • Uses 22NF batteries
  • Model Number: GP620
  • Designed exclusively for Golden, imported product

Product Features

Drive Wheels: Center

Maximum Speed: 4 mph

Battery Type: 2-NF22

Charge: Off Board

Standard Seat: Captain’s Seat

Operating Range: 12 miles

Warranty

Frame: 5 Years

Drive Train: 1.08 Years

Electronics: 1.08 Years

Batteries: 1 Year


Tires

Standard Tires: Flat Free

Center Tires: 10"

Caster: 6


Weight of Unit

Base: 226 lbs.

Seat With Arms: 51 lbs.

Battery Weight: 37/pack


Size

Weight Capacity: 450 lbs.

Ground Clearance Under Deck: 3.5"

Turning Radius: 20"

Length: 40"

Width: 25"

Number of Seat Height Positions: 5
