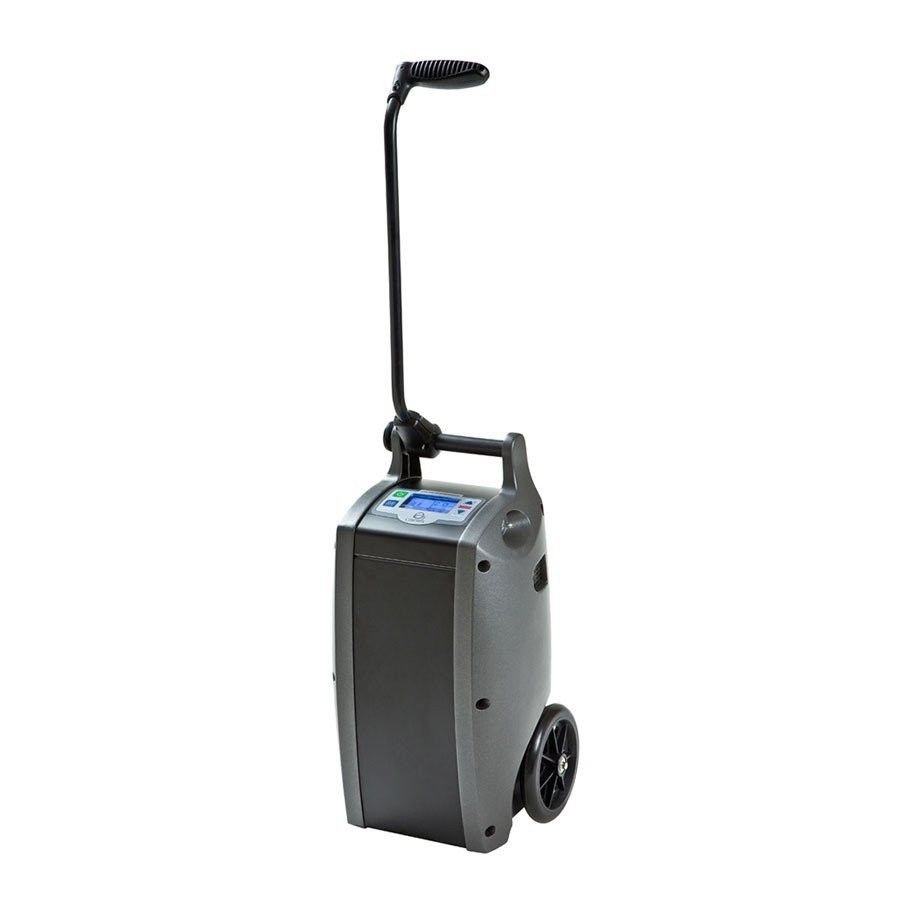

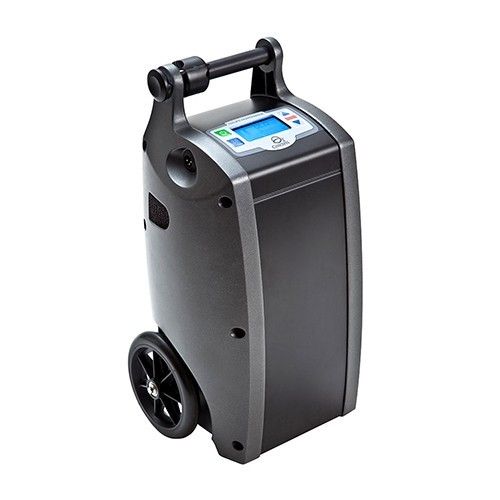

Continuous Portable Oxygen Concentrator Rental

Dimensions Height: 20.2"

Width: 10.9"

Depth: 8"

Weight** Device: 16.7 lbs

Battery: 1.35 lbs/each

Oxygen Flow Rate Pulse Dose Settings 0.5-6 in 0.5 increments (8mL-96mL)

0.5-3 LPM in Continuous Mode in 0.5 LMP increments

Battery Duration*** 5.75 hours @ 2 pulse at 20 bpm

2.5 hours @ 2LPM continuous

Sound Level @ 2 Pulse 40 dBA

Battery Recharge Time**** 1.5 hours - 1 battery

2.5 hours - 2 batteries

Oxygen Concentration 87%-95.6% at Sea Level at all settings

Oxygen Output Pressure 5psig +/- 1 psig (34 +/- 7 kPa)

AC Power Universal Input: 100-240 VAC, 50-60 Hz, 2 Amps

Output 24 Volts, 6.3 Amps

DC Power 12 -15 VDC, 10 Amps

Operating Temperature 50°F (10°C) to 104°F (40°C)

Altitude Operating Range 0 - 13,123 Feet (0 - 4,000 Meters)

Transportation/Storage Temperature -4°F (-20°C) to 140°F (60°C)

Transportation/Storage Humidity 0-95% Non-Condensing

Warranty 5 Year Limited

1 Year on Accessories/Battery

*O2 Concepts reserves the right to change specifications of this product at anytime without notice

**Production weight does not include cart kit

***Battery duration shown is for extended battery system

****Battery recharge time will increase if unit is running while charging

What's Included

 New Nasal Cannula

 Unit on wheels

 AC Charger

 DC Car charger

Flow Rate Setting Continuous Flow(Hours of Battery Life) Pulse Flow(Hours of Battery Life)

1 Battery 2 batteries 1 battery 2 batteries

0.5 2 hr 53 min 5 hr 45 min 3 hr 8 min 6 hr 15 min

1.0 2 hr 38 min 5 hr 15 min 3 hr 6 hr

1.5 1 hr 45 min 3 hr 30 min 3 hr 6 hr

2.0 1 hr 45 min 2 hr 30 min 2 hr 53 min 5 hr 45 min

2.5 1 hr 2 hr 2 hr 23 min 4 hr 45 min

3.0 45 min 1 hr 30 min 2 hr 4 hr

3.5 N/A 1 hr 45 min 3 hr 30 min

4.0 1 hr 30 min 3 hr

4.5 1 hr 15 min 2 hr 30 min

5.0 1 hr 8 min 2 hr 15 min

5.5 1 hr 2 hr

6.0 53 min 1 hr 45 min

Brochure
