Product Code : rx-75
Model No : CX416ADDA-ELR

Cruiser X4 Wheelchair

  • Weighs 34 pounds or less when properly equipped in the basic configuration (Excluding front rigging)
  • Easy to propel and transport
  • Frame style eliminates seat guides and allows for custom backs and accessories

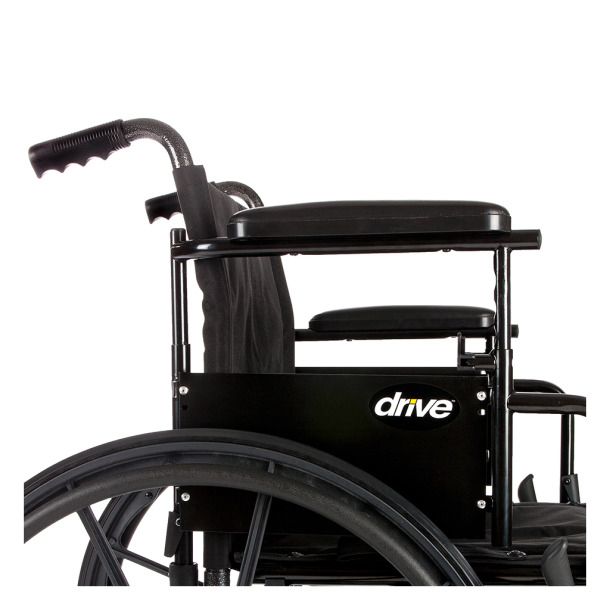

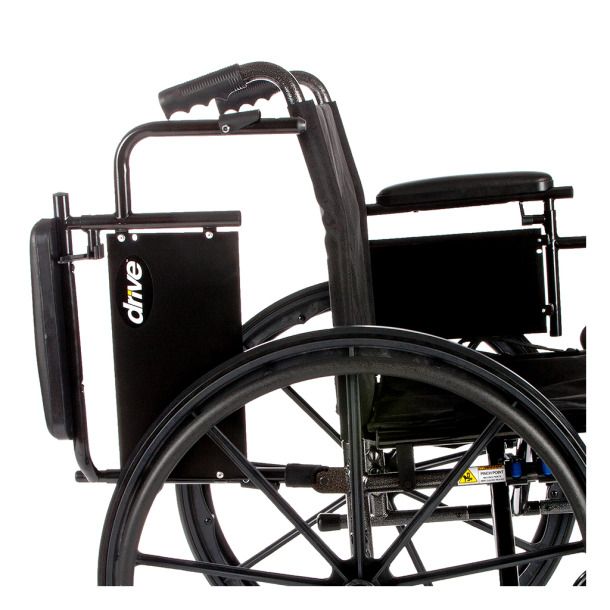

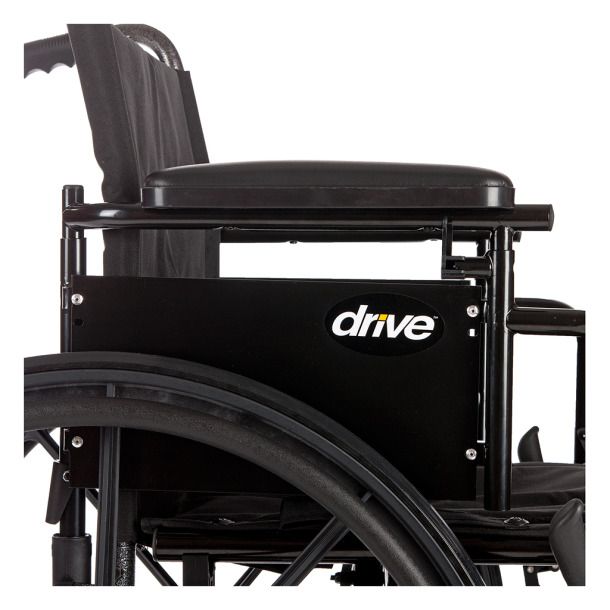

  • Flip-back, removable arm is height adjustable from top of seat rail 10" to 14" and features a front mounted easy-to-use lever release mechanism (Figure A - C)
  • Padded armrests provide added patient comfort
  • Height adjustable segmented back
  • Aluminum and Carbon steel blended frame with combination powder coated and silver vein finish is attractive, chip resistant and easy-to-maintain
  • Durable, flame retardant nylon upholstery resists mildew and bacteria

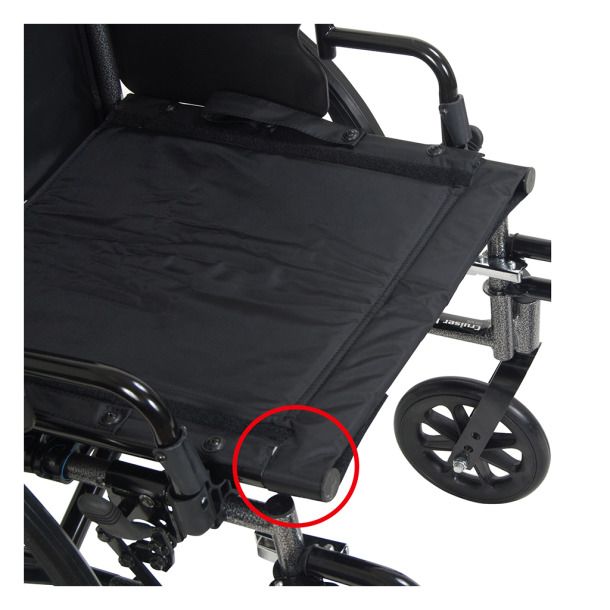

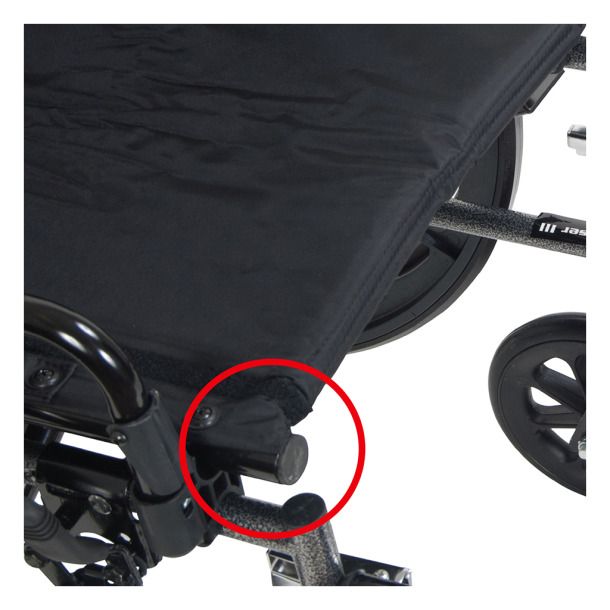

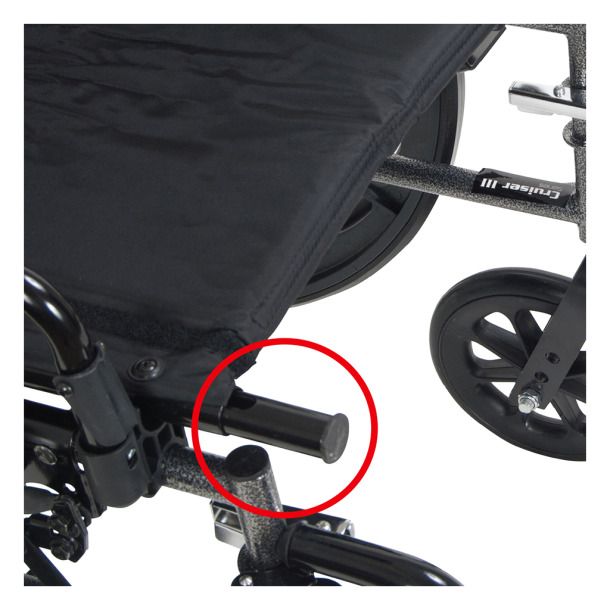

  • Patented adjustable depth seat 16" and 18" on chair depths (Figure D - F)
  • 3 position quick release rear axles mounted on Composite Mag-style wheels with composite hand rims are lightweight and maintenance free (Figure G)
  • Polyurethane rear tires and composite casters offer superior performance, smoother ride and are lightweight
  • Dual over center cross links provide added rigidity (Figure H)
  • Comes with swing-away footrests or elevating leg rests with tool-free adjustable length riggings
  • Composite footplates with heel loops are durable and lightweight
  • Precision sealed wheel bearings through-out ensure long lasting and reliability
  • 8" front casters have 3 height adjustments and angle adjustments (Figure I)
  • Triple rear axle positions provides easy transition of seat height from standard to hemi level
  • Comes with push-to-lock wheel locks

Back Height 16" - 17.5"

Carton Shipping Weight 46 lbs | 48 lbs | 50 lbs

Height 36"

Length with Riggings 43"

Product Weight without Riggings (16 , 18 , 20 ) 32 lbs | 34 lbs | 36 lbs

Seat Depth 16"/18" On Chair

Seat To Floor Height 17" | 18" | 19"

Seat Width 16" | 18" | 20"

Warranty Limited Lifetime

Warranty on Frame Limited Lifetime

Weight Capacity 300 lbs

Width Closed 12"

Width Open 23" | 25" | 27"
