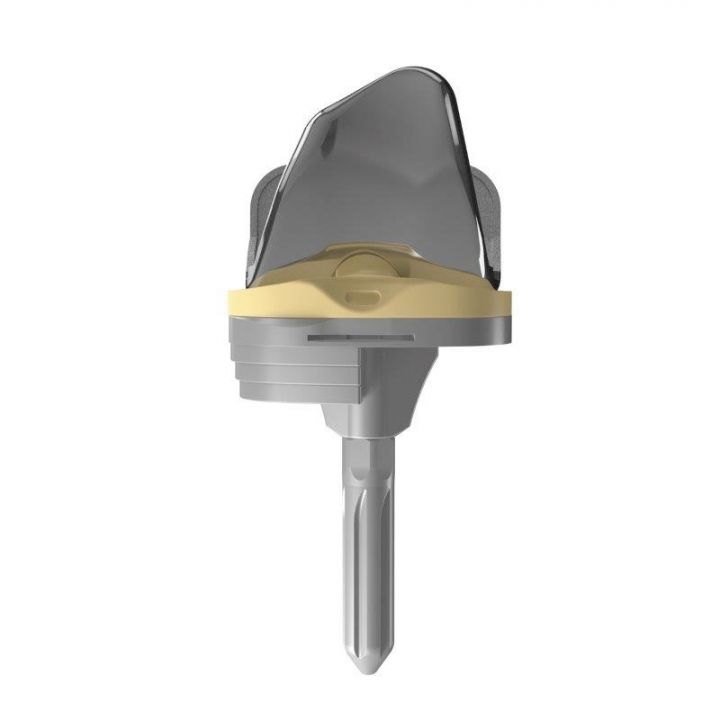

The EMPOWR Universal Tibia and EMPOWR VVCâ„¢ Tibial Insert broaden the clinical indications of the EMPOWR Knee Systemâ„¢ to provide more solutions through a seamless and efficient transition from standard primary, to complex primary and revision knee arthroplasty procedures.

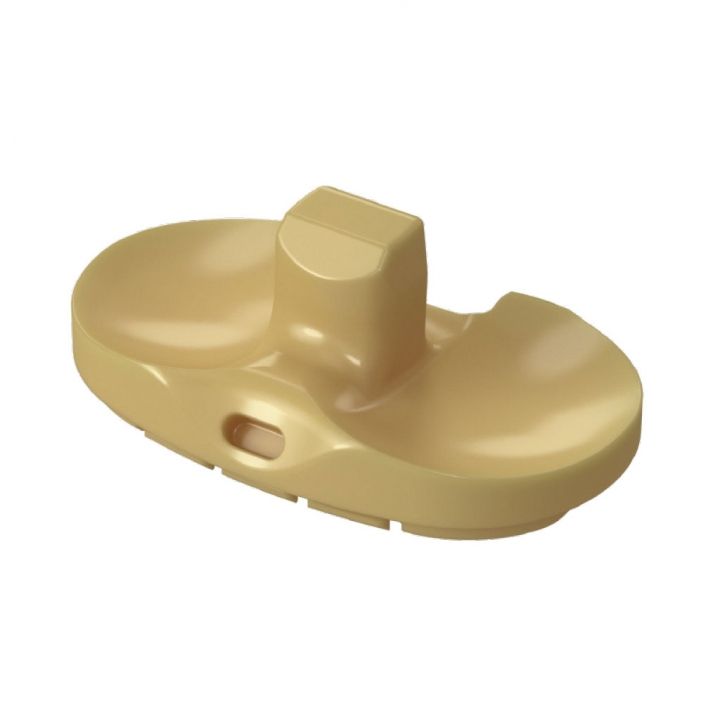

| EMPOWR VVCâ„¢ TIBIAL INSERT | ||
|---|---|---|
| Thicknesses | 10, 12, 14, 16, 19, 22*, 25*mm | |
| Varus/Valgus Constraint | ± 3.5° | |
| Internal/External Rotation | ± 5.5° | |
| Material | e+â„¢ UHMWPE | |

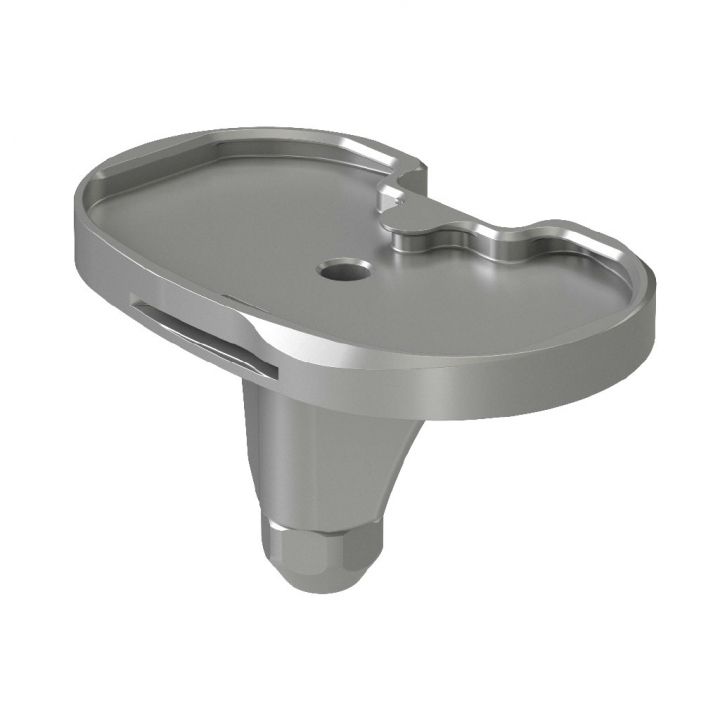

| EMPOWR UNIVERSAL TIBIAL BASEPLATE | ||
| Sizes | 2-11 (Asymmetric) | |
| KEEL LENGTHS | 2-3 (31mm), 4-8 (35mm), 9-11 (43mm) | |
| EMPOWR Insert Compatibility | CR, 3D, PS, VVC | |
| Material | CoCr | |

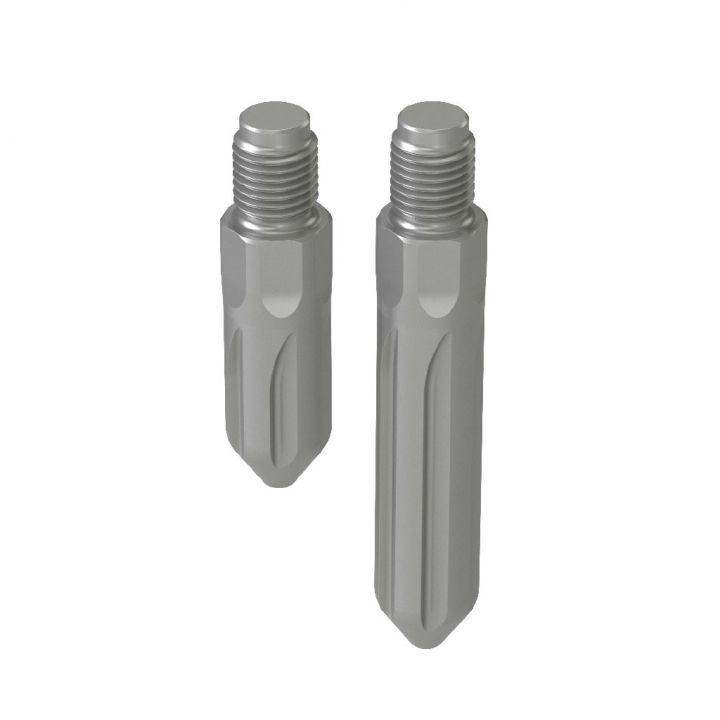

| EMPOWR UNIVERSAL TIBIAL STEM | ||
| Lengths | 40, 65mm | |
| Diameters | 10, 12, 14mm | |
| Fixation | Cemented | |
| Material | CoCr | |

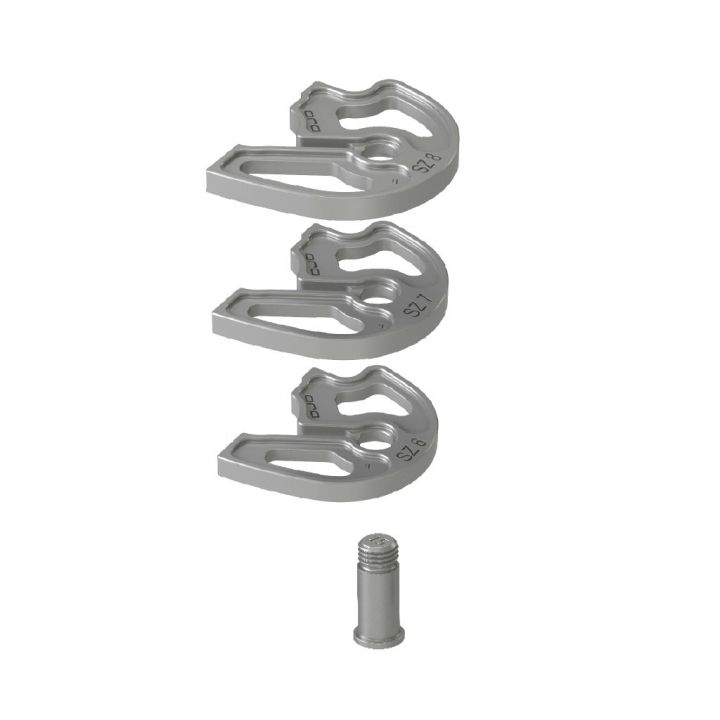

| EMPOWR UNIVERSAL TIBIAL AUGMENT | ||
| Thickness | 5mm | |
| Maximum Stack Height | 15mm | |
| Fixation | Ti Screw (5, 10, 15mm) | |
| Material | Ti | |
REFERENCES
Reinforcement pin required
e+â„¢ Surgeon Testing Summary 0011110-004
3DKneeâ„¢ Technical Monograph 0011102-004
EMPOWR VVCâ„¢ Locking Mechanism Testing PR17-063-01
