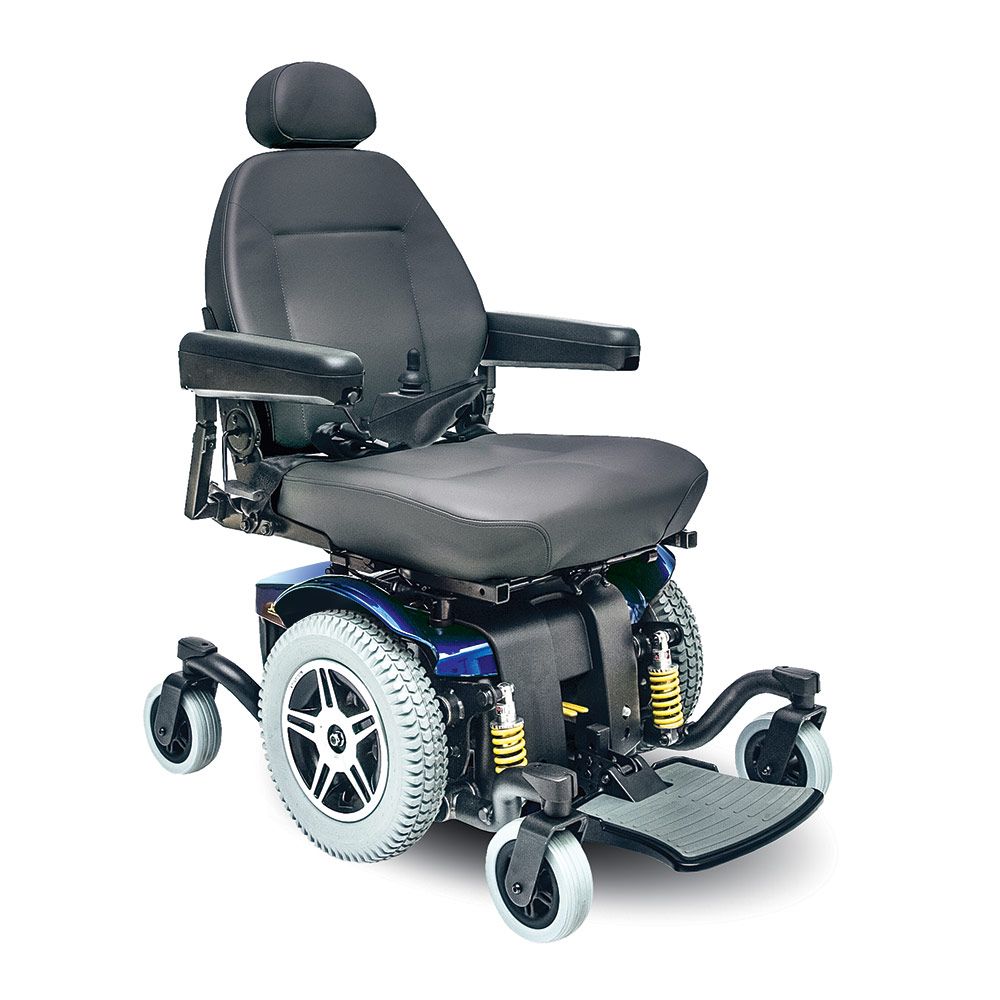

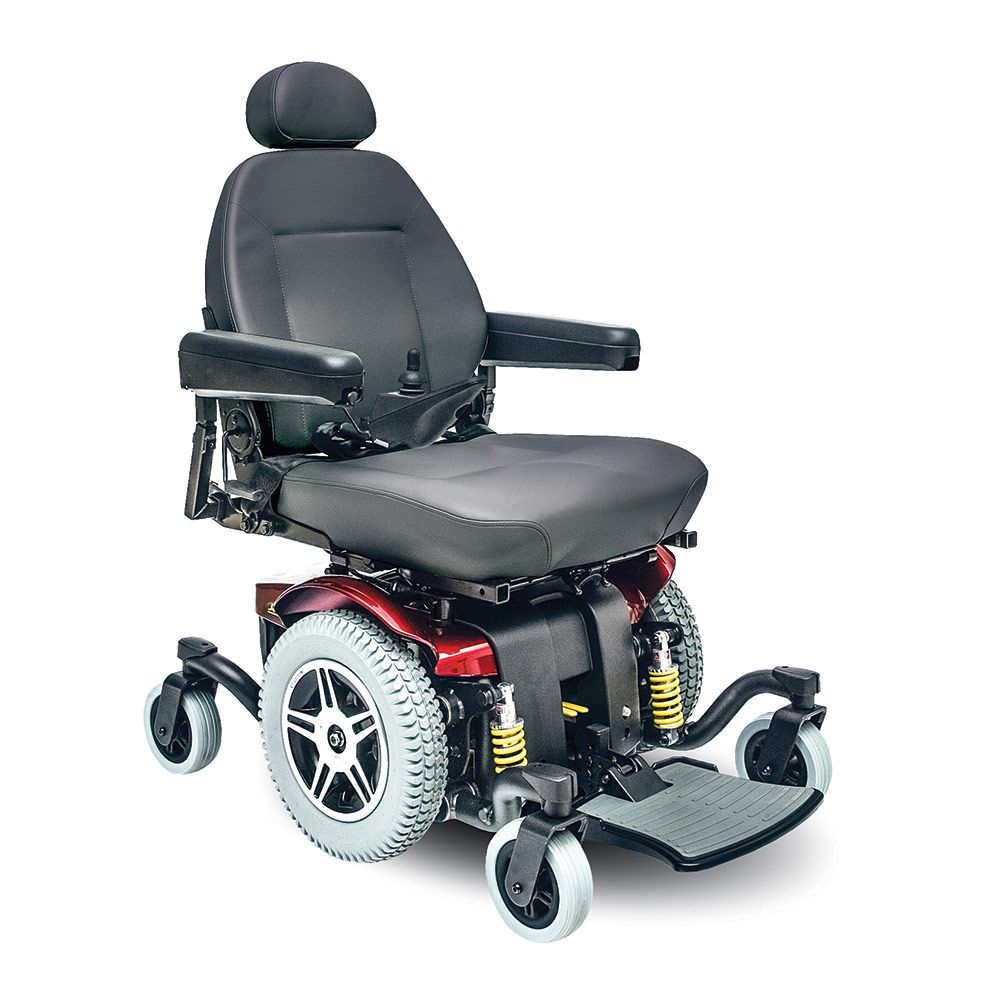

Jazzy® 614 HD

  • Home
  • Jazzy® 614 HD
Product Code : rx-21
Model No : Jazzy® 614 HD

Jazzy® 614 HD

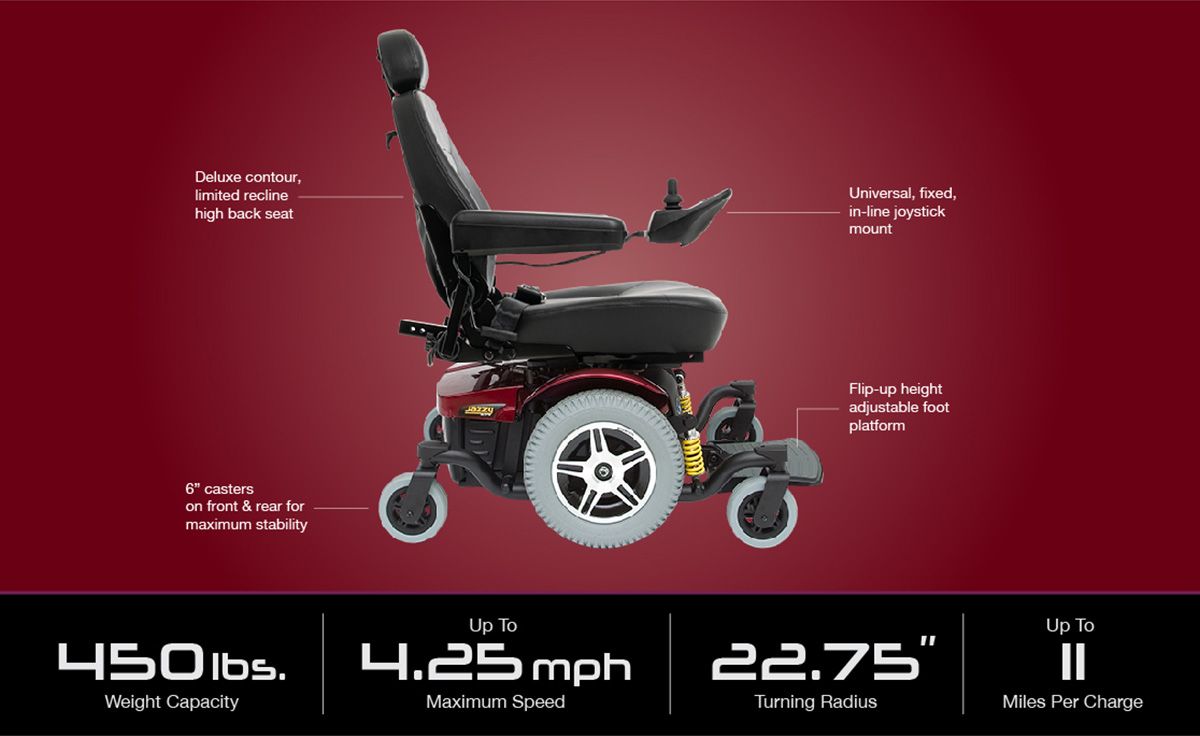

  • 450 lbs. weight capacity
  • Up to 4.25 mph maximum speed
  • 22.75" turning radius
  • Up to 11 miles per charge
  • Deluxe contour, limited recline high back seat
  • 6" casters on front & rear for maximum stability
  • Universal, fixed, in-line joystick mount
  • Dual enhanced in-line motors for greater efficiency, torque, range and performance
  • 6” casters on front and rear for maximum stability

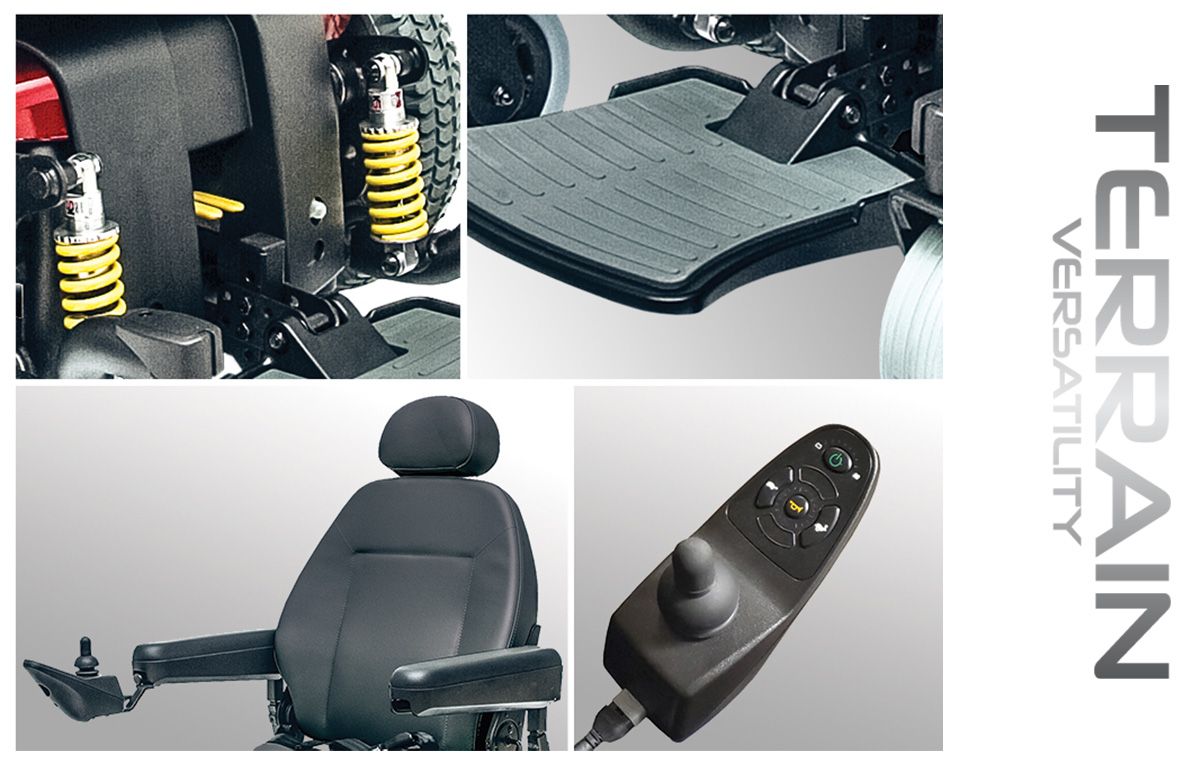

  • Active-Trac® ATX Suspension for enhanced performance over more varied terrain
  • Easy rear access to batteries
  • Seating up to 24” W x 24” D
  • Tool-less shroud removal
  • Easy serviceability
  • Flip-up, height-adjustable foot platform
  • HCPCS Code: Group 2: Heavy Duty (K0824/K0825)

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments


Model Jazzy® 614 HD

Weight Capacity 450 lbs.

Turning Radius1 22.75"

Width1 25.5"

Length1,2 35.5"

Maximum Speed3 Up to 4.25 mph

Ground Clearance1 2.25"

Front Wheels 6" solid casters

Drive Wheels 14" foam filled

Rear Wheels 6" solid casters

Drivetrain Two motor, in-line, Mid-Wheel 6®

Braking System Regenerative and electro-mechanical

Suspension Type Active-Trac® (ATX) with Mid-wheel 6® Technology

High-Back Seat (max. size) 24"W x 24"D

High-Back Seat-to-Floor Range 20.5 23.5

Synergy® Seating 24W 24D

Synergy® Seat-to-Floor Range 17.75 19.75

Standard Electronics 50A, Dynamic Shark

Battery Size (2 required) 12 volt, NF-22

Standard Battery Charger 5A, off-board

Per-Charge Range3,6 Up to 11 miles

Battery Weight5 37 lbs.

Weight of Heaviest Piece4 122 lbs.

Standard Seat Weight 52 lbs. (high-back)

Standard Seat Size 20" x 18"-20"

22" x 20"-22"

Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)

Warranty 5-year limited on frame;

13-month limited on electronics;

13-month on drive motors;

13-month limited on batteries.


1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

2 Without front riggings.

3 Varies with user weight, terrain, battery type, battery condition and tire pressure.

4 Does not include seat or battery weights.

5 Battery weight may vary based on manufacturer.

6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

Jazzy® 614 HD Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)


  • 5-Year limited warranty on frame
  • 13-month limited warranty on electronics
  • 13-month limited warranty on drive motors
  • 13-month limited warranty on batteries
