Jazzy® Passport

  • Home
  • Jazzy® Passport
Product Code : rx-15
Model No : Jazzy® Passport

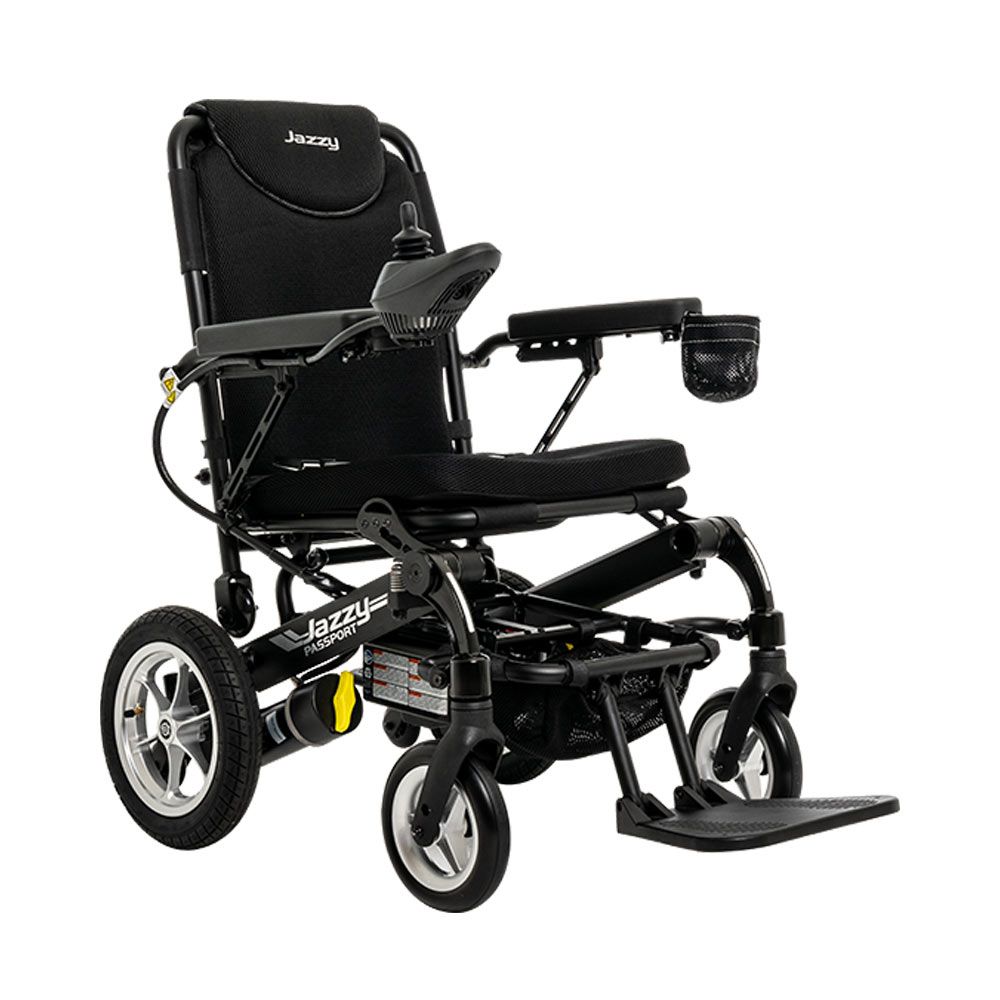

Jazzy® Passport

Is travel in your future? Make sure you have your Jazzy® Passport by your side! With a sleek and versatile design, the Jazzy® Passport can transport you to all of your destinations with ease. Built to fold down compactly in just a few simple steps, this power wheelchair fits into the trunk of most vehicles.

The Jazzy® Passport has a weight capacity of up to 250 pounds and gets you where you are going with a maximum speed up to a 3.6 mph. You can zip through an airport, get from one end to the next on a cruise ship or traverse the sidewalks of your favorite travel destinations.

Several of the great benefits of the Jazzy® Passport is the 3-inch ground clearance and the folded dimensions (31" H x 23.5" W x 16" D) to easily fit into several types of vehicles. The lithium-ion travel battery makes travel safe as well as portable, so you can transport your portable electric wheelchair on a plane! With an airline-approved lithium-ion air safe travel battery**, the sky is the limit for all of your travels! A dual braking system provides extra security and safety. And don’t forget the storage! Keep all your belongings within reach with the under-seat storage and back seat pocket.

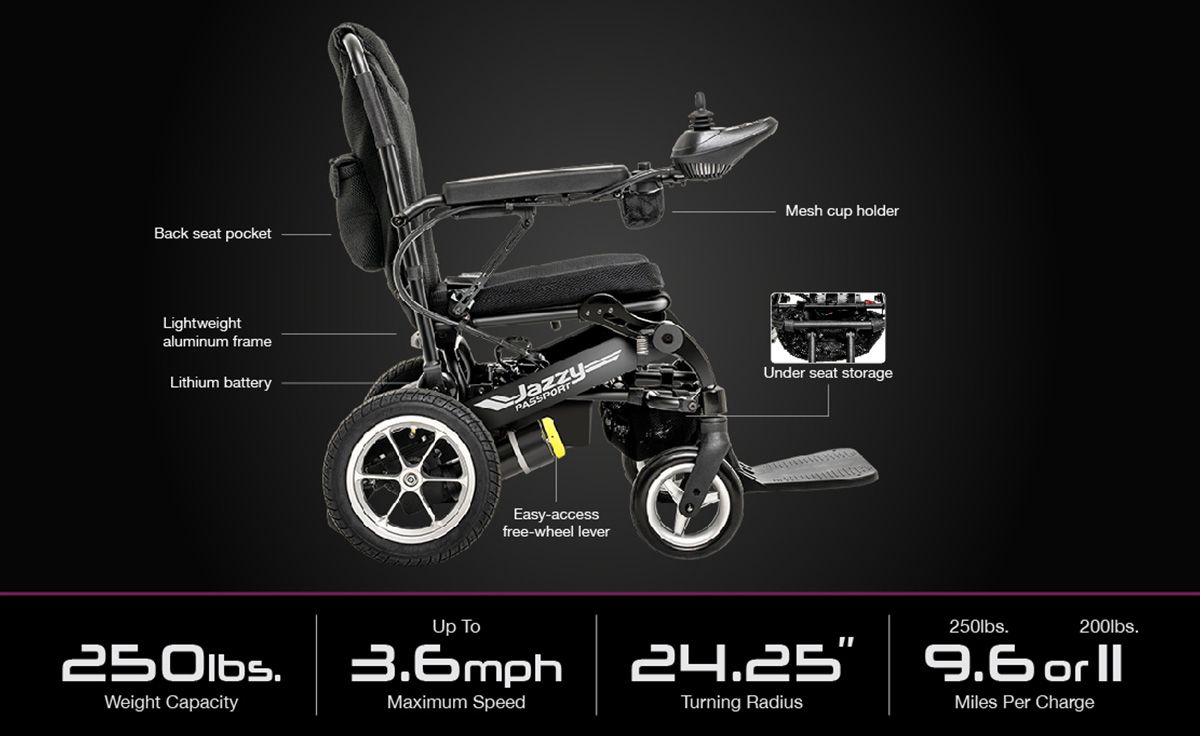

  • 250 lbs. weight capacity
  • Up to 3.6 mph maximum speed
  • 24.25" turning radius
  • 9.6 miles per charge at 250 lbs., 11 miles per charge at 200 lbs.
  • Back seat pocket for extra storage while on-the-go
  • Easy-access free-wheel lever
  • A compact and lightweight design makes traveling a breeze
  • Folds in just a few simple steps for effortless transport
  • Includes convenient, under seat mesh storage bag, mesh cup holder and 40” lap belt
  • Large foot platform to accommodate the user’s comfort
  • Specialty foam seat design for extreme comfort
  • Available with a 10.4 AH or 18 AH lithium ion air safe travel battery** (**Check with your airline before flying)
  • K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Passport and its lithium ion battery are permitted.

CATEGORY SPECIFICATION

Model Jazzy® Passport

Weight Capacity 250 lbs.

Turning Radius1 24.25"

Maximum Speed1 Up to 3.6 mph

Ground Clearance3 3" at motor

Overall Length3 40"

Overall Width3 23.5"

Seat-to-Ground Height 19"

Seat-to-Foot Platform Height 14.5" (no adjustment)

Casters 8" solid

Drive Tires 12" Pneumatic drive

Suspension Limited

Range per Charge1,2 Up to 6.3 Miles (200 lbs.) (10AH)

Up to 11 miles (200 lbs.) (18AH)

Up to 5.7 miles (250 lbs.) (10 AH)

Up to 9.6 Miles (250 lbs.) (18 AH)

Total Weight Without Batteries3,5 54 lbs.

Heaviest Piece When Disassembled3 N/A

Standard Seating Material: Black, Foam

Dimensions: 17.5" x 16.5"

Drivetrain Two-motor rear-wheel drive

Standard Electronics 50 amp PG VSI

HCPCS Codes K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria

Dual Braking System Regenerative and electromechanical

Battery Requirements3 25.2V 18 Ah Lithium ion or (1) 25.2 V 10.4 Ah Lithium-ion (travel battery)

Battery Weight4 7.6 lbs. (18 Ah)

5.2 (10.4Ah, travel battery)

Battery Charger 2-amp, off-board

Weight of Heaviest Piece 54 lbs. (unit does not disassemble)

Warranty

5-year limited on frame;

13-month limited on electronics;

13-month on drive motors

13-month limited on batteries.

Notes:

1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%.

2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.

3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.

4 Battery weight may vary based on battery manufacturer.

5 Includes standard seat weight.

All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Passport and its lithium ion battery are permitted.

Jazzy® Passport Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.


Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)

Warranty

  • 5-Year limited warranty on frame
  • 13-month limited warranty on electronics
  • 13-month limited warranty on drive motors
  • 13-month limited warranty on batteries
