Jazzy Select® 6

  • Home
  • Jazzy Select® 6
Product Code : rx-9
Model No : Jazzy Select® 6

Jazzy Select® 6

  • 300 lbs. weight capacity
  • Up to 4 mph
  • 21.875" turning radius
  • Up to 15 miles per charge
  • In-line joystick mount
  • Jazzy Armor guards protect against daily wear and tear
  • Flip-up, height adjustable foot platform
  • Comfortable, depth-adjustable, limited recline comfort high back with headrest

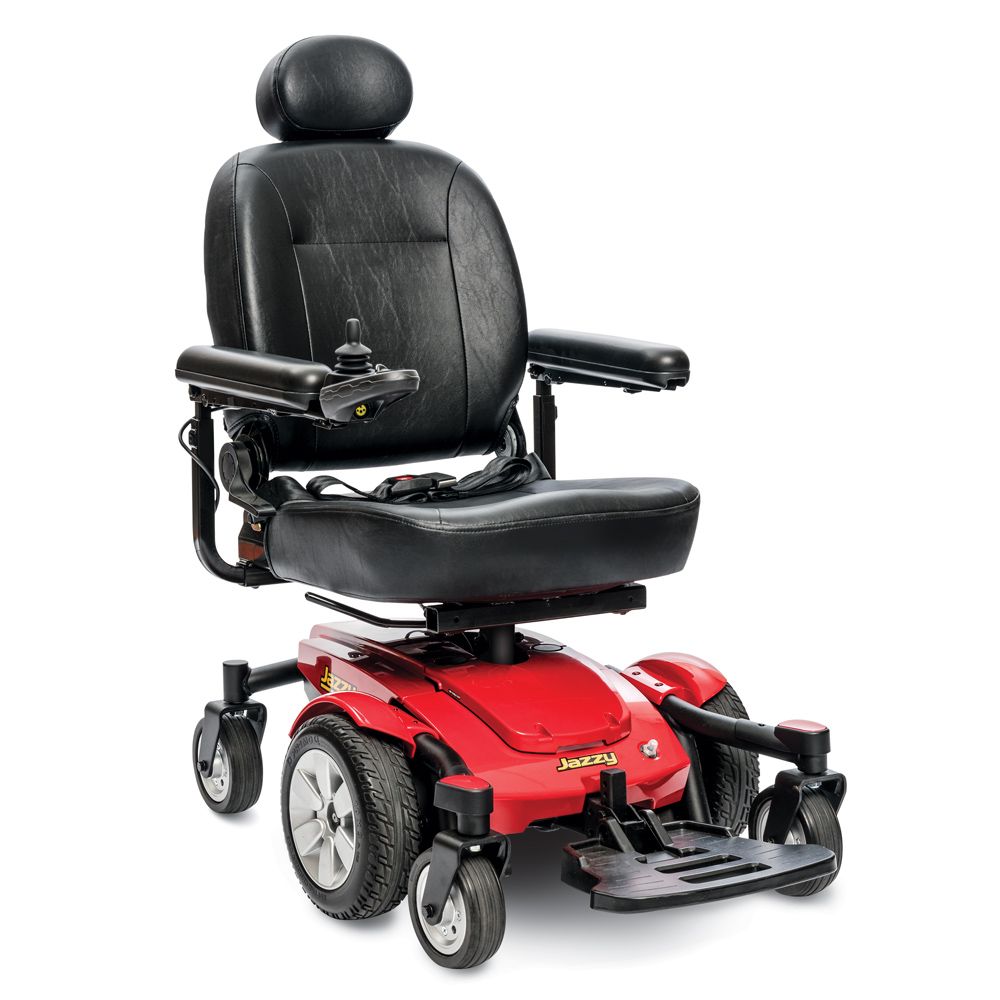

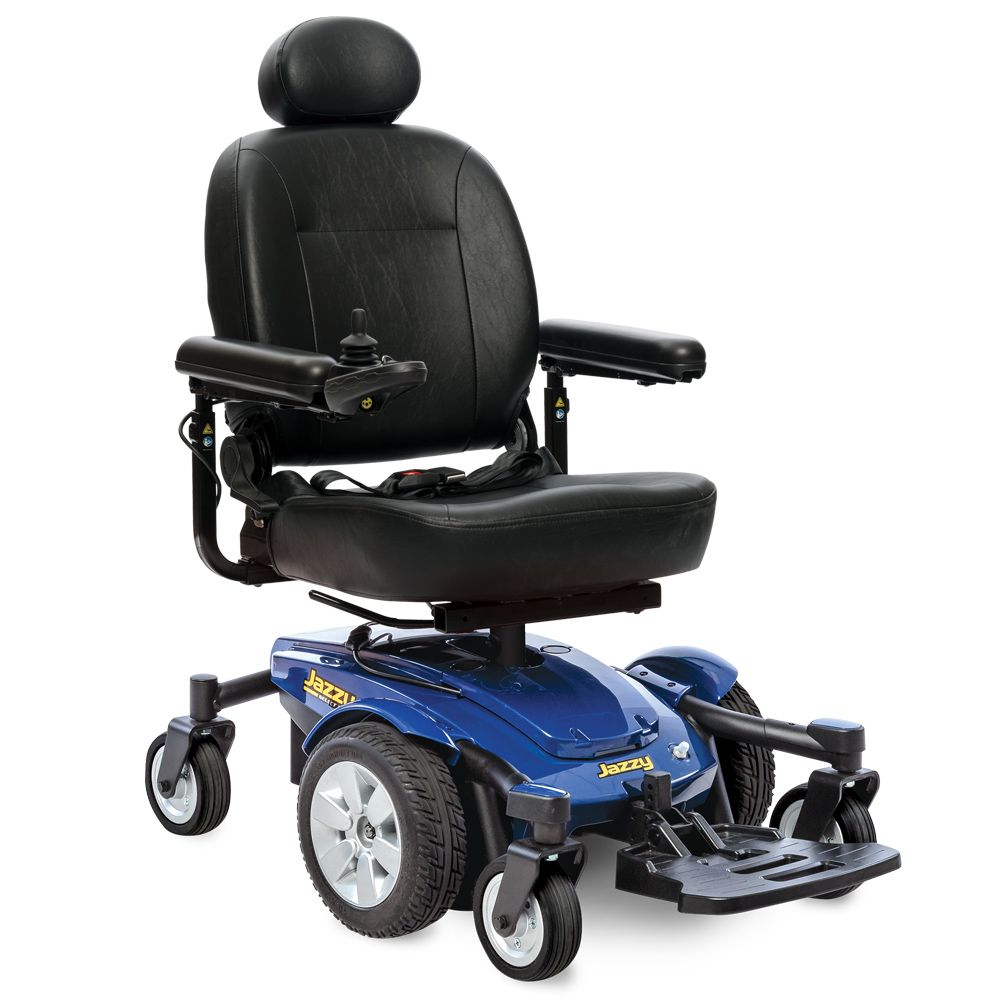

  • Red or blue color-through shroud
  • Mid-wheel drive offers tight turning radius around doorways and corners
  • Patented Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
  • Dual-layer powder coated frame for increased durability
  • Built with ease of service in mind
  • HCPCS Code: Group 2: Standard (K0822/K0823)

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

CATEGORY SPECIFICATION

Model Jazzy Select® 6

Weight Capacity 300 lbs.

Turning Radius1 21.875"

Width1 23.5"

Length1,2 35.5"

Maximum Speed3 Up to 4.0 mph

Ground Clearance1 1.75"

Front Wheels 6" solid casters

Drive Wheels 10" solid

Rear Wheels 6" solid casters

Drivetrain Two motor, in-line, mid-wheel drive

Braking System Regenerative and electro-mechanical

Suspension Type Active-Trac® (ATX) with Mid-wheel 6® Technology

High-Back Seat (max. size) 20"W x 20"D

High-Back Seat-to-Floor Range 21.25” — 23.25”

Synergy® Seating 20"W x 20"D

Synergy® Seat-to-Floor Range 16.5" - 18.5"

Power Elevating Seat Option6 Yes

Standard Electronics 40A, PG GC34

Battery Size (2 required) 12 volt, U-1

Standard Battery Charger 3.5A, off-board

Per-Charge Range3,8 Up to 15 miles

Battery Weight7 25 lbs. each

Weight of Heaviest Piece5 Base - 97.4 lbs.

Standard Seat Weight 43 lbs. (comfort, high-back)

Standard Seat Size 16" x 16"-18"

18" x 18"-20"

20" x 18"-20"

Medicare Code Coverage Group 2: Standard (K0822/K0823)

Warranty

5-year limited warranty on frame;

13-month limited warranty on electronics;

13-month limited warranty on drive motors;

13-month limited on batteries


Notes:

1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

2 Without front riggings.

3 Varies with user weight, terrain, battery type, battery condition and tire pressure.

4 40A, PG 6-key VR2 required with Power Elevating Seat Option.

5 Does not include seat or battery weights.

6 Not available with TRU-Balance?.

7 Battery weight may vary based on manufacturer.

8 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

Jazzy Select 6 Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.


Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)

Warranty

  • 5-Year limited warranty on frame
  • 13-month limited warranty on electronics
  • 13-month limited warranty on drive motors
  • 13-month limited warranty on batteries
