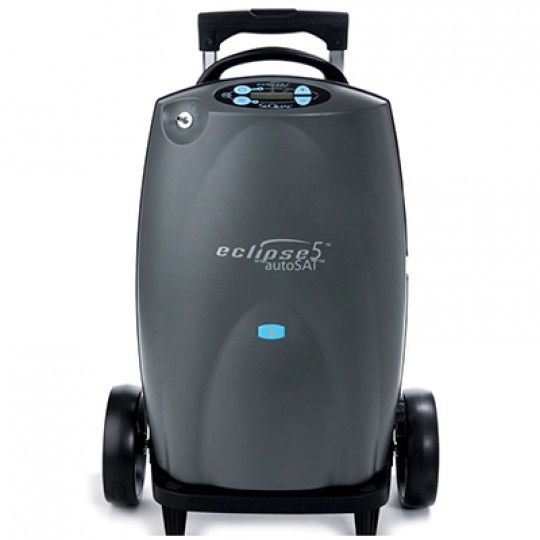

SeQual Eclipse 5 Portable Oxygen Concentrator w/ autoSAT + Additional Battery
Named the Eclipse because it surpasses all other battery operated oxygen concentrators on the market today with its continuous flow feature. The Eclipse Portable Oxygen Concentrator is the only portable oxygen concentrator on the market that provides continuous flow operation of up to 3 liters per minute in a lightweight unit.
This lightweight Portable Oxygen Concentrator from SeQual introduces an exciting new concept in Oxygen Concentrators - The ECLIPSE ! The industry's first portable oxygen concentrator capable of producing up to 3 lpm of continuous flow oxygen , yet still small enough to plug directly into the 12v power outlet in your car or take on a plane . The Sequal Eclipse portable oxygen concentrator has now been FAA approved for in-flight use.
For pulse-dose , the Eclipse has settings from 1-9 lpm . For times when your aren't near a power source, the Eclipse portable oxygen concentrator brings along it's own power - the internal power-pack supplies over 2 hours of battery power !
The Eclipse portable oxygen concentrator weighs 17 pounds with the power pack installed, or just 15 without the battery-pack. With the telescoping handle and smooth-rolling wheels, it's easy to take with you everywhere! The Sequal Eclipsemeasures 19"x12"x7".

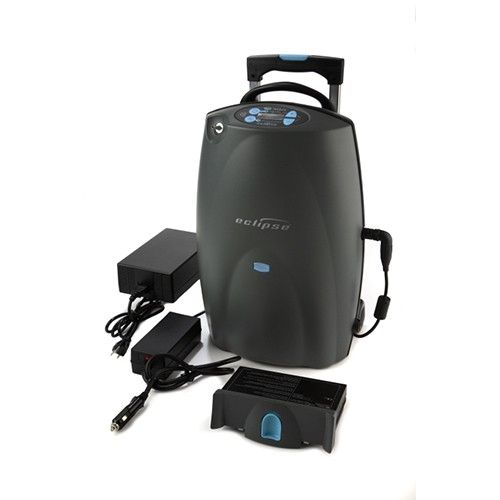

Comes With
1 power-pack battery
AC Power cord
DC (car) power cord
low-profile cart with telescoping handle
comprehensive 3-yr warranty
CAR CHARGER NOW INCLUDED!
Features
Up to 3 LPM continuous flow oxygen
Pulse Settings 1 to 9 LPM.
Runs on house hold current, DC from an auto accessory plug outlet and its own rechargeable battery
Size 19.3 H x 12.3 W x 7.1 D inches
Weight with battery 17.4 lbs
Weight without battery 15 lbs
Power uses 48 watts@ 1.0 LPM 85 watts 6 pulse
Oxygen concentration 91 to 93 %
Operation temperature 50 F to 104 F
Altitude operating range 0 to 13,123 Feet
The Eclipse is equipped with an Oxygen Monitor. (OCI)
| Weight | Liters Per Minute | Sound Level | Length | Width | Height | Warranty |
|---|---|---|---|---|---|---|
| 15 lbs | 1-3 Continuous 1-9 Pulse | 40-48 dB | 12.3 | 7.1 | 19.3 | 3 Year Limited |
Weight 15 lbs
Size Height: 19.3" Depth: 7.1" Width: 12.3"
Oxygen Flow Continuous flow settings : 0.5 to 3.0 (0.5 liter increments) Pulse flow settings : 16 to 96 (16mL increments)
Oxygen Concentration 90% + 3% @ sea level
Oxygen Output Pressure 5.0 psig (34.5 kPa) nominal
Trigger Sensitivity adjustable between -0.125 cm H2O to -0.40 cm H2O
Sound Level 48 dB(A) at 3.0 LPM continuous flow Mode, 40 dB(A) at 3.0 pulse flow setting
Battery Life 2 Hrs @ 2.00 LPM 1.3 Hrs @ 3.00 LPM 5.2 Hrs @ 2.00 Pulse 3.5 Hrs @ 6.00 Pulse
Power AC Operation : 100 - 240 VAC, 50 - 60 Hz DC Operation : 12 V nominal Power Cartridge (Battery) : Quantitiy (2) 97.5 W-Hr battery packs each containing 7.92 grams of equivalent lithium content NOW COMES WITH CAR CHARGER
Power Cartridge Duration Pulse Flow Setting : 5.2 hours at 2.0 pulse dose setting,12bpm 3.5 hours at 6.0 pulse dose setting,12bpm Continuous Flow Setting : 2.0 hours at 2.0 LPM continuous flow 1.3 hours at 3.0 LPM continuous flow
Power Cartridge Recharge Time 1.8 to 5.0 hrs, dependent upon the flow recharge time setting to achieve 80% capacity from a fully discharged Power Cartridge
Back Up Alarm Power 9 Volt battery
Alarms Loss of power Low Power Cartridge Low Therapeutic Oxygen Output Oxygen flow outside normal limits No inspiration detected in Pulse Flow Mode Unit Malfunction
User Controls ON/ OFF switch Flow adjustment buttons Continuous/ Pulse Flow button
What's Included
FREE Shipping
Free 6 Month Supply of Nasal Cannulas!
No Sales Tax!
3 Year Limited Warranty on Device
6 Month Limited Warranty on Batteries
