Wrangler®

Product Code : rx-169
Model No : Wrangler®

Wrangler®

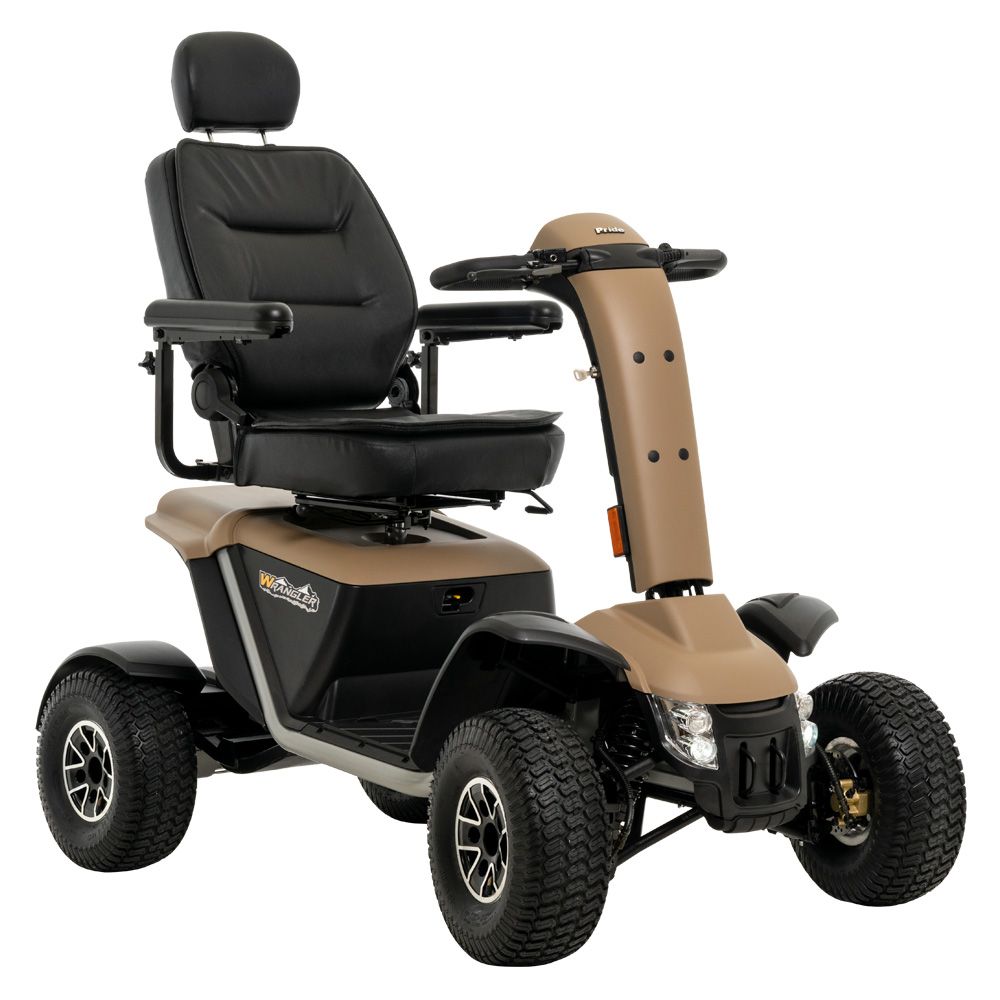

Rugged and built to last, the Wrangler is everything you want in an outdoor scooter.

Model Wrangler®

Model Number MV600

Turning Radius** 94.75"

Overall Width 32.5"

Overall Length** 61.25"

Maximum Speed* Up to 11 mph at 350 lbs., Up to 11.4 mph at 200 lbs.

Ground Clearance 5.5" at motor

Front Tires 14.5" tubeless pneumatic

Rear Tires 14.5" tubeless pneumatic

Seat-to-Ground Height Range 30"-31.5"

Seat Type Pillow-top, limited recline, 48.6 lbs., black vinyl, width 18.5", depth 16.5"

Weight** 274 lbs.

Battery Weight 2 (75 AH) 48 lbs. ea., 2 (100 AH) 60 lbs. ea.

Battery Requirements (2) 75 AH, Optional (2) 100 AH

Maximum Range Per Charge* Up to 18.6 miles at 350 lbs., Up to 22.6 miles at 200 lbs., Up to 24.2 miles at 350 lbs. (100 AH), Up to 29.4 miles at 200 lbs. (100 AH)

Battery Charger Off-board, 8A

Suspension Front & Rear (CTS Suspension)

Maximum Weight Capacity 350 lbs.

Standard Body Colors Desert Sand, Stone Grey

Weight of Heaviest Piece** 219 lbs. (unit does not disassemble)

Non-Medical THIS PRODUCT IS NOT A MEDICAL DEVICE AND IS NOT INTENDED TO ASSIST, TREAT, DIAGNOSE, OR ALLEVIATE ANY MEDICAL CONDITION OR DISABILITY.

Warranty Lifetime limited;

2-year limited on Electronics;

2-Year limited on Drivetrain;

6-months on battery

All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or — 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

Meeting and Exceeding High Standards for your Peace of Mind.Your Pride product has undergone thorough product testing to ensure safety, durability and performance.Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.


Some of the items our testing criteria include are:

Product Stability & Brakes Effectiveness Tests

Fatigue & Impact Strength Verification Tests

Overall Product Performance Verification

Dimensional Requirement Compliance

Product Durability & Reliability Testing

Material Protective Coating Testing Verification

Misuse and Abuse Testing

Ergonomic Verification

Environmental Testing for Adverse Weather Operation Conditions

Electronic Systems Performance and Durability

Chemical and Bio-Contamination Analysis Testing for Toxicity Verification

Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components

UL94VO Flammability Testing for Compliance of Plastic Components

Electromagnetic Compatibility (EMC)

Warranty

Lifetime limited warranty on frame

2-year limited warranty on electronics

2-year limited warranty on drivetrain
