Zero Turn 10 4-Wheel (ZT10)

  • Home
  • Zero Turn 10 4-Wheel (ZT10)
Product Code : rx-168
Model No : Zero Turn 10 4-Wheel (ZT10)

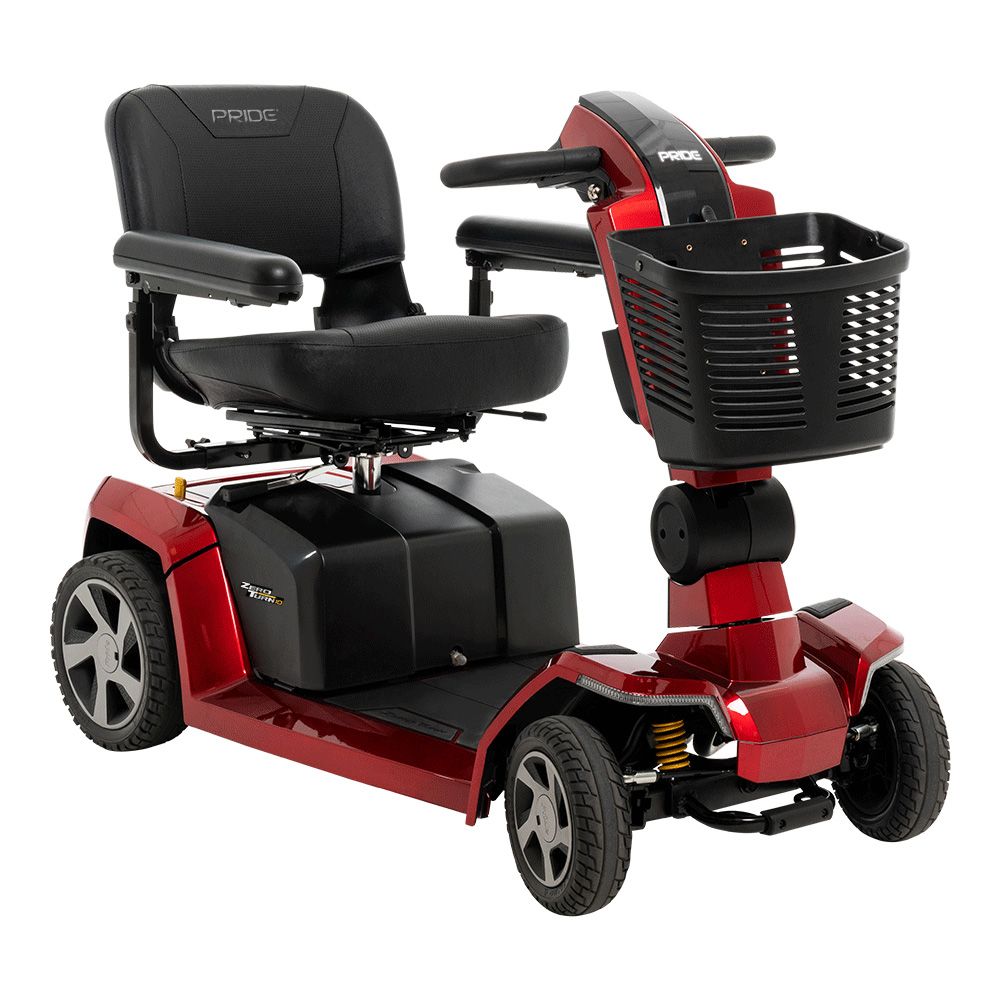

Zero Turn 10 4-Wheel (ZT10)

The first 4-wheel indoor/outdoor scooter is feature packed! Enjoy three-speed control, plenty of storage and complete LED lighting.

Model                  Zero Turn 10 (ZT10)

Model Number S710ZT

Turning Radius** 43"

Overall Width 24.25"

Overall Length** 48"

Maximum Speed* Up to 7.0 mph

Ground Clearance 2" at motor

Front Tires 9" solid

Rear Tires 10.75" solid

Drive System 24-volt DC motor, rear-wheel drive, dual in-line

Dual Braking System Regenerative and electromechanical

Suspension Front & Rear (CTS Suspension)

Seat-to-Ground Height Range 23"-25"

Standard Seating Type: Foldable, compact, Weight: 30 lbs., Materal: Black Vinyl, Dimensions: Width: 18", Depth 17"

Weight** 181.8 lbs.

Battery Requirements Size: (2) 40 Ah, Weight: 30.25 lbs. each

Maximum Range Per Charge* Up to 18 miles at 400 lbs., Up to 24 miles at 200 lbs.

Battery Charger Off-board, 3.5 amp

Maximum Weight Capacity 400 lbs.

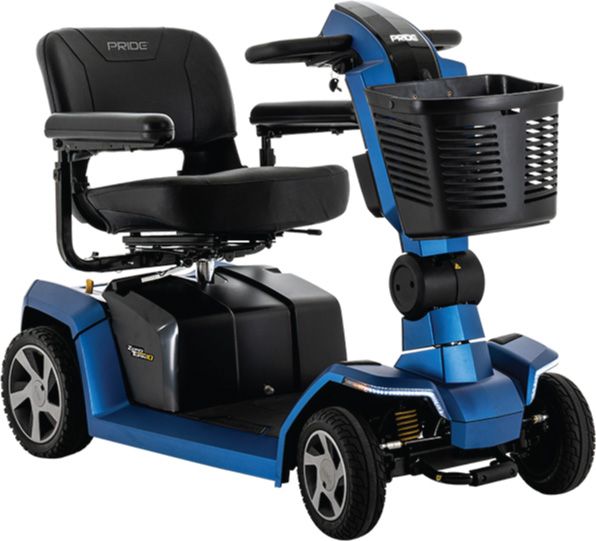

Standard Body Colors Candy Apple Red, Ocean Blue, Pearl White

Weight of Heaviest Piece** 75 lbs. (front section)

Seat-to-Deck Height 18"-20"

HCPCS Code K0899 - POWER MOBILITY DEVICE, NOT CODED BY DME PDAC OR DOES NOT MEET CRITERIA

Warranty Frame: lifetime limited, Drivetrain: 2-year limited, Electronics: 2-year limited, Battery: 6-months

All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or — 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.



Some of the items our testing criteria include are:

Product Stability & Brakes Effectiveness Tests

Fatigue & Impact Strength Verification Tests

Overall Product Performance Verification

Dimensional Requirement Compliance

Product Durability & Reliability Testing

Material Protective Coating Testing Verification

Misuse and Abuse Testing

Ergonomic Verification

Environmental Testing for Adverse Weather Operation Conditions

Electronic Systems Performance and Durability

Chemical and Bio-Contamination Analysis Testing for Toxicity Verification

Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components

UL94VO Flammability Testing for Compliance of Plastic Components

Electromagnetic Compatibility (EMC)


Warranty

Lifetime limited warranty on frame

2-year limited warranty on electronics

2-year limited warranty on drivetrain
